Black ABS Hard case with ASF, wheeled Bicycle carry case

• moulded 4.4mm ABS plastic outside shell, with full aluminum profile and full length hinge.

• welded aluminum 'anti-shock frame' (ASF) for mounting the bike (wheels are no longer mounted here, but put in wheelbags).
• ASF has adjustable front mount for any size bike, includes Quick-Release!
• Includes two padded wheel bags.

• two thick sheets of open cell foam inside.


• 49.6" wide, 33.5" tall and 12.6" deep (internal)
• 126cm width, 85cm height and 32cm deep (internal)

• 30 pounds (empty with mounting hardware) 13.8kg


• Will fit any bike frame including downhill bikes (an optional through-axle 'lefty' kit is available for $20).

• latches can be locked (not recommended since 9/11)

• All hardware is mounted with screws and can be replaced by user.
• Includes one extra set of wheels (for the box).
• Includes compression protection expander (see pict)

• 4 wheels are uni-directional, so case can only be rolled in a straight line.
• Moulded case is stackable and locks into each side.

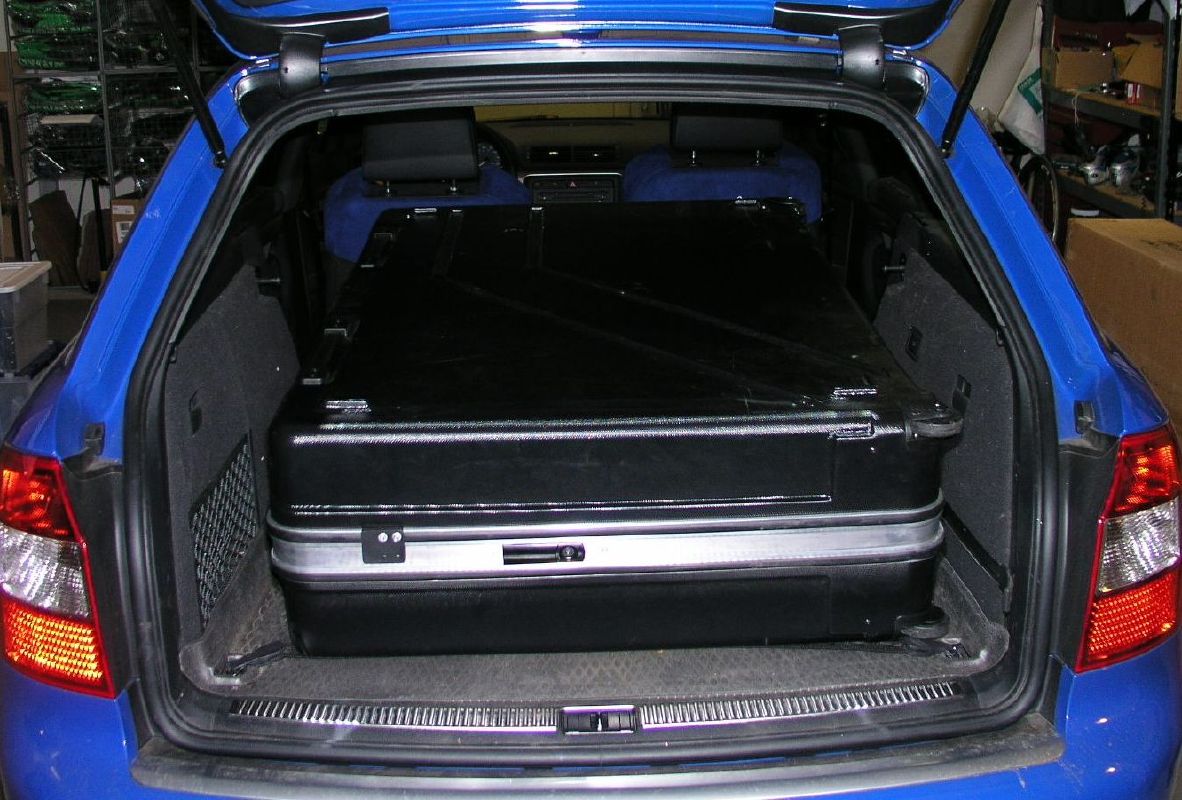

• Not suitable for smaller cars.


• Comes packed in a retail box, 52x37x14”.
• All handles and parts are fastended with screws by hand, so the user can make repairs with standard tools.

• Ships with UPS or FexEx ground as oversize, due to volume.
• plenty off extra space for gear!
• Quick. 10 min. packing, 5 min. unpacking.

• direct-to-consumer pricing

• Replacement for manufacturing defects within two years. This doesn't include normal wear and tear or damage from bagage handlers when travelling. You need to file an insurance claim with the carrier for this. We do stock replacement parts.


1. Take the wheels out of the bike and put them aside.

2. Shift the chain to be on the large front ring and the small cog on the back.

3. Mount your frame with the rear dropouts first onto the ASF (anti shock frame) on the t-shaped piece (A) and tighten the quick relase to hold it in place. The chain should go around the 'T' mounting bracket on the ASF.

4. Turn the handlebars by 90 degrees, so the fork dropouts align with the quick release located on the adjustable clamp (D) of the ASF.

5. Adjust the angle of the fork bracket (E) so that the chain ring is not touching the ground. Tighten both the bracket (E) and then the quick release, so the bike is no firmly in position for transport.
6. Check if your pedals extend beyond the sides of the ASF. If so, they should be removed.
7. Place your front wheel in one of the padded wheel bags, after removing the quickrelease. Store the QR in the bag's pocket.

8. Place your rear wheel in one of the padded wheel bags, after removing the quickrelease. Store the QR in the bag's pocket. Lay the padded bag in the case, so the sprockets(gears) are NOT facing the frame, so they can't possibly damage the frame.

9. Test the fitting of the mounted frame and wheels into the case and make any required adjustments to the seat or handlebars.
10. Insert the bike frame and ASF into the case, so that the ASF is at the bottom of the case, where the wheels are, and not 'standing on it's head.

11. Add any additional clothing, padding or other soft materials around the frame to give it extra protection. Add the compression protector (included) near the middle of the case.

12. Don't leave any loose items inside the box that might fly around and damage the bike frame. Everything should be secured in padded bags, boxes or similar. We also recommed using pipe insulation found in the hardware store for additional protection of yourr frame.

13. The ASF includes an extra extension piece for the bracket (E), which is needed for mounting 'fully' or downhill forks. We sell an adapter kit for downhill bikes which use a through-axle system. It comes with adapters for every known size fork/axle.

14. Close the two halves of the case, making sure things don't shift around. The two aluminum profiles should interlock completely around the case, then slide the four latches into the locked position.
15. Test your packing job by shaking the case and turning it on its side, like a baggage handler would do.

16. We recommend not locking the case, due to security checks in the baggage area. If you do lock the case, they may be forced to break the locks open.
17. Don't forget to label your case with both your home and vacation address.

18. Inspect your case for damage immediately after you arrive and make any insurance claims while you are still at the airport.


Two 'wheel guard' padded bags are included with this case. Additional bags are $18each with purchase of a case.


Also included is a compression member to prevent the middle of the case from being crushed.
An additional accessorie which is not included, but can be purchased in our store:

You can find this chain cover bag in our online store or just add $6/each to your order.

Shipping: with FedEx ground will be calculated based on your ZIP code. Lowest rates are for the lower 48 states. Due to the oversized nature of this case, we can't ship it reasonably outside the US. Also USPS will not take this large of a package (sorry no APOs).

Suggested Retail Price:
$ 450. + shipping
