Rotary Butterfly Draw Latch with Locking Mechanism
Draw latches are extremely versatile latches that can be used anywhere, from equipment cases and toolboxes to RVs and garbage cans. High working loads, convenient mechanical advantage, and compact size are common advantages that make rotary draw latches a good choice for co-planar applications where space and strength are important functional considerations. There are dozens of names these locks go by: butterfly latches, wing locks, cam latches, rotary locks. Use the dimensions and specifications in the diagram below to see if these will fit your application.
These are surplus latches which are used in the construction of B&W Bicycle and Tool cases. You can find more about the company
here.
These latches are compatible with the K4 Southco latches item number K4-2833-07 (K4-2338-07 keeper).
Hex head design provides added strength and allows latch to be tightened with hex wrench. Spring loaded anchor plate compensates up to 4mm (.156") for misalignment

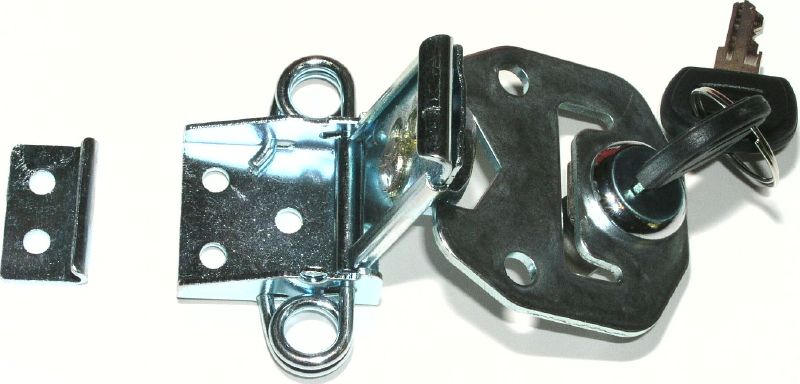

We are selling each latch with the keeper plate. Take a close look at the high quality construction of this item. All the edges are smooth and sharp edges have been rounded and polished.
- Color: bright silver
- Functions: Rotary Draw Latch with key lock.
- Operation: lift and turn
- Consistent pull-up with spring.
- Material & finish: Zinc plated steel chromate dip
- Load Capacity: 600 lbs
- Closed length: 2.11" (54mm)
- Open Length: 2.42" (61 mm)
- Size: medium
- Keyed: all our latches use the same key (2 included with each lock).
- Weight with keeper plate: 6 oz.
- Made in China with quality
- Compatible Item No. Southco K4-2833-07
- Suggested Retail price $15/each
These are brand new items. We have 100s of these in stock, so ask for a discount on large volume orders. If you need the plastic spacer shown in the pictures below, we have some available.

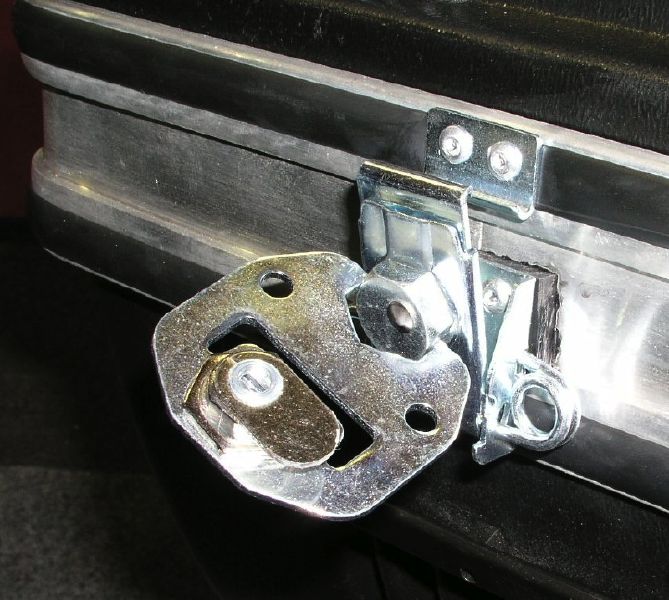

Click on pictures below for enlarged version (in new window). Latch is shown in a typical application, pulling two aluminum profiles together for a tight seal. This is an airline case used to hold expensive bicycle wheels.
